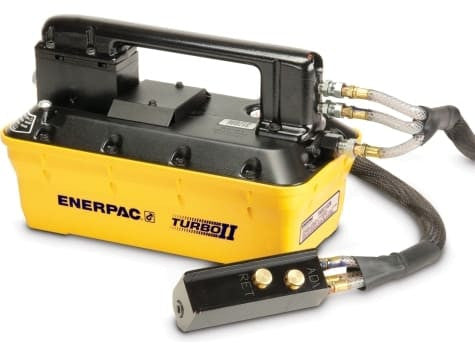

PARG31S8N Enerpac Turbo II Air Hydraulic Pump combines the 3000 Series higher-flow hydraulic package with remote air-pendant operation and the largest PARG reservoir in this set.
High-Flow Remote Control for Larger Single-Acting Circuits
With 462 in³ of oil capacity, this model is the PARG choice for higher-volume single-acting fixtures. The remote pendant allows the operator to watch the clamp or workpiece while the pump remains positioned elsewhere.
The 3000 Series is listed at 50 in³/min at 3,000 psi. PARG51S8N is the same large-reservoir remote-control concept in the 5000 Series, while PARG3105NB reduces the reservoir to 230 in³ for a smaller hydraulic circuit.
Specifications
| Series | Turbo II |
|---|---|
| Pump Series | Turbo II |
| Maximum Operating Pressure | 5,000 psi |
| Power Source | Compressed Air |
| Rated Oil Flow | 50 in³/min @ 3,000 psi |
| Pump Operation | Remote Pendant |
| Reservoir Capacity | 462 in³ |
| Valve Configuration | 3-Way Remote Air Pendant |
| Valve Operation | Remote Air Pendant |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Single-Acting |
| Air Consumption | 12 scfm @ 100 psi air |
| Air Pressure Range | 25–125 psi |
