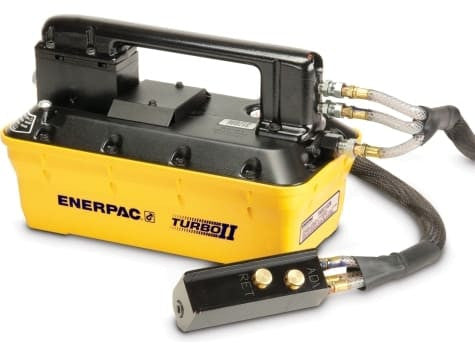

PARG5102NB Enerpac Turbo II Air Hydraulic Pump is the smallest-reservoir remote-pendant model in the 5000 Series PARG group. The 127 in³ tank keeps the power unit compact while control remains at the operator's position.
Compact Remote-Pendant Hydraulic Power
This model is useful when the fixture needs remote single-acting control but not the additional oil capacity of PARG5105NB or PARG51S8N. The pendant separates the operator from the pump, which can simplify large or obstructed workholding setups.
Enerpac lists 20 in³/min at 5,000 psi for the 5000 Series. For a similar compact reservoir with higher 3,000 psi flow, PARG3102NB is the corresponding 3000 Series configuration.
Specifications
| Series | Turbo II |
|---|---|
| Pump Series | Turbo II |
| Maximum Operating Pressure | 5,000 psi |
| Power Source | Compressed Air |
| Rated Oil Flow | 20 in³/min @ 5,000 psi |
| Pump Operation | Remote Pendant |
| Reservoir Capacity | 127 in³ |
| Valve Configuration | 3-Way Remote Air Pendant |
| Valve Operation | Remote Air Pendant |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Single-Acting |
| Air Consumption | 12 scfm @ 100 psi air |
| Air Pressure Range | 25–125 psi |
