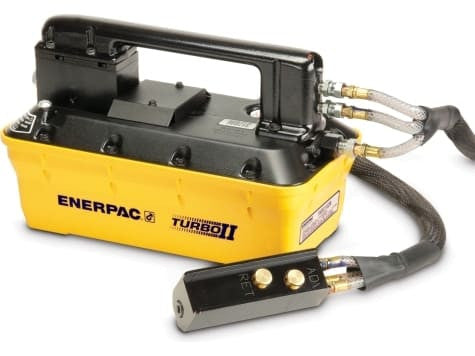

The Enerpac PARG1102N is a turbo ii air hydraulic pump with 127 in³ usable oil capacity and advance/hold/retract control.
Key specifications
- Maximum operating pressure: 10,000 psi
- Oil capacity: 127 in³ usable
- Valve: advance/hold/retract
- Application: single-acting cylinders
- Control configuration: 15-ft pendant hose
- Air pressure range: 40–115 psi
Before ordering
Confirm the tool pressure rating, required oil volume, valve operation and hose connections before ordering. Confirm the required air supply and air preparation. Match the valve to the cylinder action and return requirements.
Repair kits and related equipment
- PATG1100K repair kit — For the documented PATG1/PARG1 pump families with date codes beginning C, D or E; verify the complete pump configuration. Confirm the equipment identification markings and required seal type before ordering.
Pump service parts and equipment
- DC2234900SR air-motor repair kit — Verified for the specified DC2200900SR air motor in documented Turbo II pumps with date codes beginning C, D or E. Confirm the installed air-motor assembly; this is not a complete pump overhaul kit.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Pump Series | Turbo II |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 5–6 in³/min @ 10,000 psi |
| Reservoir Capacity | 127 in³ |
| Pump Operation | Remote Pendant |
| Valve Configuration | 3-Way, 3-Position Remote Air Pendant |
| Valve Operation | Remote Air Pendant |
| Cylinder Compatibility | Single-Acting |
| Air Pressure Range | 40–125 psi |
| Air Consumption | 8–12 scfm |
