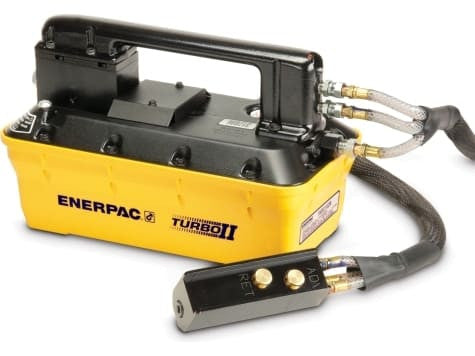

The reason to choose PARG1105N is its exact combination of remote air-pendant control and 230 in³ oil capacity. It is part of Enerpac's Turbo II 10,000 psi group.
PARG1102N is the nearest smaller-reservoir alternative (127 in³).
Remote Pendant Operation for Single-Acting Cylinders
PARG1105N is the middle-capacity PARG configuration: remote pendant control for a single-acting circuit with 230 in³ of oil. It is the balancing point between the compact 127 in³ version and the 462 in³ model when the operator still wants control away from the power unit.
This model belongs to the 10,000 psi Turbo II group rather than the 3,000/5,000 psi workholding versions. Enerpac lists 5–6 in³/min @ 10,000 psi at full pressure, so every connected hose, valve and cylinder must be suitable for the 10,000 psi system rating.
Specifications
| Series | Turbo II |
|---|---|
| Pump Series | Turbo II |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Compressed Air |
| Rated Oil Flow | 5–6 in³/min @ 10,000 psi |
| Pump Operation | Remote Pendant |
| Reservoir Capacity | 230 in³ |
| Valve Configuration | 3-Way, 3-Position Remote Air Pendant |
| Valve Operation | Remote Air Pendant |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Single-Acting |
| Air Consumption | 8–12 scfm |
| Air Pressure Range | 40–125 psi |
