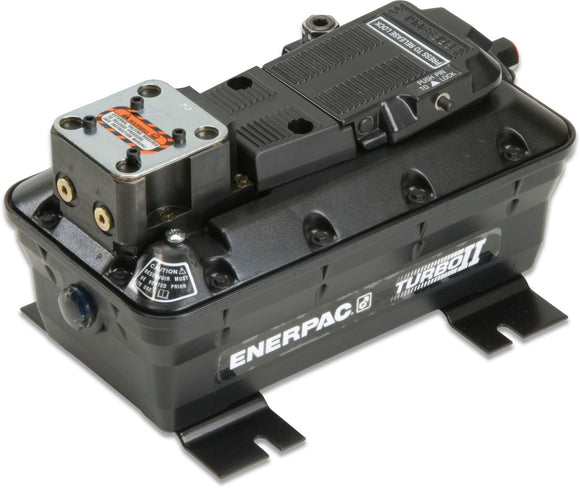

PASG3002PB Enerpac Turbo II Air Hydraulic Pump uses a single D03 valve mounting position on the compact 127 in³ reservoir, with a 1/4-19 BSPP hydraulic connection. The pump itself is the higher-flow 3000 Series configuration.
Compact D03 Platform With the 3000 Series Flow Curve
The user supplies the directional valve, so this model is best suited to systems where the valve function is chosen as part of the fixture design rather than predetermined by the pump. The single D03 station keeps the layout simpler than a PACG multi-station manifold.
Enerpac lists 50 in³/min at 3,000 psi for the 3000 Series. For the same BSPP connection and D03 concept with the pressure-oriented 5000 Series output, compare PASG5002PB. PASG3002SB changes the port standard to #4 SAE.
Specifications
| Pump Series | Turbo II |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 5,000 psi |
| Rated Oil Flow | 50 in³/min @ 3,000 psi |
| Reservoir Capacity | 127 in³ |
| Pump Operation | Foot / Hand Operated |
| Valve Configuration | Single D03 Valve Mount |
| Valve Operation | User-Supplied Valve |
| Air Pressure Range | 25–125 psi |
| Air Consumption | 12 scfm @ 100 psi air |
