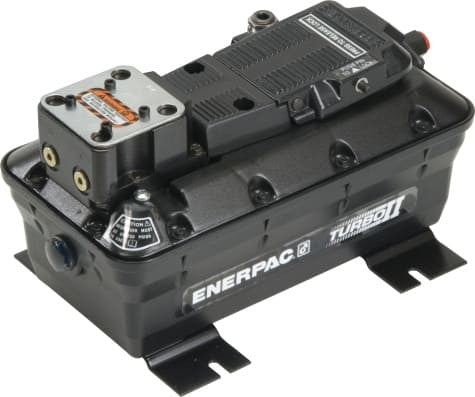

PASG5002SB Enerpac Turbo II Air Hydraulic Pump is a compact 5000 Series platform with one D03 valve mount and a #4 SAE hydraulic connection.
One Custom D03 Valve With an SAE-Port Pump
The pump is designed for a user-selected directional valve rather than a factory-defined cylinder function. This makes it different from PACG5002SB, which sends pressure and tank flow to a remote valve location instead of mounting one D03 valve at the pump.
Enerpac lists 20 in³/min at 5,000 psi and 127 in³ of reservoir capacity. PASG5002PB is the BSPP-port version; PASG3002SB retains the #4 SAE connection but changes to the 3000 Series flow profile.
Specifications
| Pump Series | Turbo II |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 5,000 psi |
| Rated Oil Flow | 20 in³/min @ 5,000 psi |
| Reservoir Capacity | 127 in³ |
| Pump Operation | Foot / Hand Operated |
| Valve Configuration | Single D03 Valve Mount |
| Valve Operation | User-Supplied Valve |
| Air Pressure Range | 25–125 psi |
| Air Consumption | 12 scfm @ 100 psi air |
