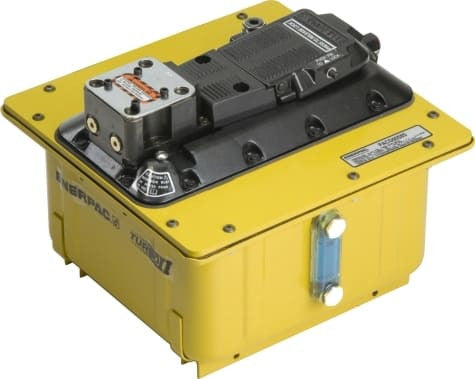

Within the Turbo II family, PASG50S8S is the 462 in³, a single D03 valve mount configuration. Its maximum hydraulic rating is 5,000 psi.
PASG50S8S uses the largest Turbo II reservoir here together with a single D03 valve mounting station. It is a configurable power source for a higher oil-volume workholding circuit where one user-selected directional valve will be mounted directly on the pump.
PASG for One Custom Workholding Function
PASG5005SB is the nearest smaller-reservoir alternative (230 in³). PASG30S8S keeps the same reservoir/control concept but changes to the 3000 Series flow profile.
The pump uses the Turbo II 5000 Series flow profile. Enerpac lists 20 in³/min @ 5,000 psi at rated pressure, so this is the pressure-oriented choice relative to the matching 3000 Series configuration with the same control style.
Specifications
| Series | Turbo II |
|---|---|
| Pump Series | Turbo II |
| Maximum Operating Pressure | 5,000 psi |
| Power Source | Compressed Air |
| Rated Oil Flow | 20 in³/min @ 5,000 psi |
| Pump Operation | Foot / Hand Operated |
| Reservoir Capacity | 462 in³ |
| Valve Configuration | Single D03 Valve Mount |
| Valve Operation | User-Supplied Valve |
| Valve Function | User-Supplied Valve Dependent |
| Air Consumption | 12 scfm @ 100 psi air |
| Air Pressure Range | 25–125 psi |
