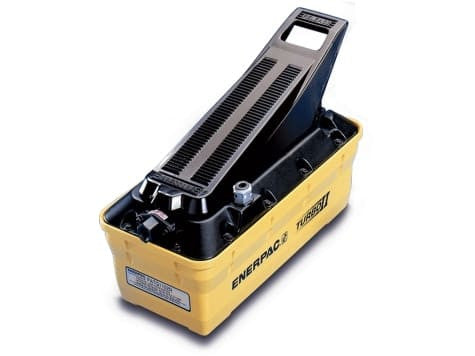

PATG3102NB Enerpac Turbo II 3000 Series Air Hydraulic Pump, 5,000 psi, 127 in³, 3-Way Treadle Valve

PATG3102NB is an Enerpac Turbo II air-hydraulic pump built around integrated treadle control, 127 in³ of reservoir capacity and the 3000 Series higher-flow hydraulic profile.

Local Treadle Control for Single-Acting Work

PATG3102NB is the compact PATG configuration, using a 127 in³ reservoir and an integrated treadle for single-acting advance, hold and retract. It is the smallest oil-capacity choice when the fixture can stay within that reservoir volume.

The hydraulic package is the Turbo II 3000 Series, which Enerpac uses as the higher-flow workholding option. PATG3102NB is published at 50 in³/min @ 3,000 psi; compare that mid-pressure delivery with the 5000 Series if the fixture spends most of its cycle near the upper pressure limit.

PATG3105NB is the nearest larger-reservoir alternative (230 in³). PATG5102PB keeps the same reservoir/control concept but changes to the 5000 Series flow profile. a 3/8-18 NPTF hydraulic connection on PATG3102NB. That port standard is a real difference from the PB versions that use BSPP threads, so the fitting standard should be confirmed before treating the models as interchangeable.

Enerpac lists a 3/8-18 NPTF hydraulic connection on PATG3102NB. That port standard is a real difference from the PB versions that use BSPP threads, so the fitting standard should be confirmed before treating the models as interchangeable.
