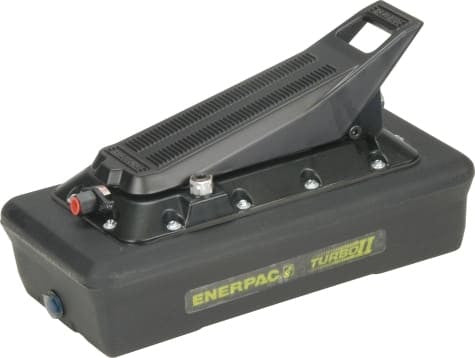

PATG31S8N Enerpac Turbo II Air Hydraulic Pump is the large-reservoir 3000 Series PATG configuration. It carries 462 in³ of oil and uses a treadle to control a single-acting hydraulic cycle.
Maximum PATG Oil Capacity With the Higher-Flow Series
The combination is aimed at fixtures that need more available oil and also benefit from the 3000 Series' stronger mid-pressure delivery. Unlike a PARG pump, control stays at the power unit rather than moving to a remote pendant.
Enerpac lists 50 in³/min at 3,000 psi. PATG51S8N provides the same 462 in³ reservoir and treadle arrangement with the 5000 Series flow profile, while PATG3105NB is the next smaller 3000 Series reservoir at 230 in³.
Specifications
| Series | Turbo II |
|---|---|
| Pump Series | Turbo II |
| Maximum Operating Pressure | 5,000 psi |
| Power Source | Compressed Air |
| Rated Oil Flow | 50 in³/min @ 3,000 psi |
| Pump Operation | Foot / Hand Operated |
| Reservoir Capacity | 462 in³ |
| Valve Configuration | 3-Way Treadle Valve |
| Valve Operation | Foot / Hand Treadle |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Single-Acting |
| Air Consumption | 12 scfm @ 100 psi air |
| Air Pressure Range | 25–125 psi |
