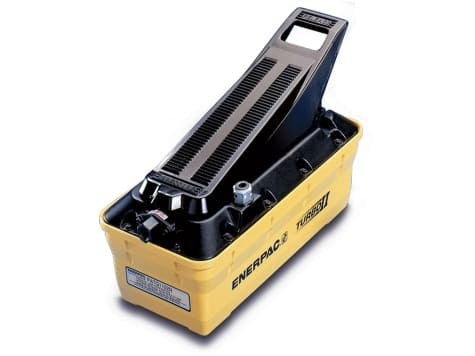

PATG5102NB Enerpac Turbo II Air Hydraulic Pump is the compact NPTF-port version of the 5000 Series PATG configuration. Its 127 in³ reservoir is paired with a three-position treadle for single-acting advance, hold and retract.
Compact 5000 Series PATG With NPTF Connection
Enerpac lists a 3/8-18 NPTF hydraulic port on this model. That connection standard is the main difference from PATG5102PB, which uses BSPP threads; both share the same small reservoir and 5000 Series operating concept.
Rated-pressure oil flow is 20 in³/min at 5,000 psi. If more oil capacity is required without changing the treadle-control approach, PATG5105NB increases the reservoir to 230 in³ and PATG51S8N to 462 in³.
Specifications
| Series | Turbo II |
|---|---|
| Pump Series | Turbo II |
| Maximum Operating Pressure | 5,000 psi |
| Power Source | Compressed Air |
| Rated Oil Flow | 20 in³/min @ 5,000 psi |
| Pump Operation | Foot / Hand Operated |
| Reservoir Capacity | 127 in³ |
| Valve Configuration | 3-Way Treadle Valve |
| Valve Operation | Foot / Hand Treadle |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Single-Acting |
| Air Consumption | 12 scfm @ 100 psi air |
| Air Pressure Range | 25–125 psi |
