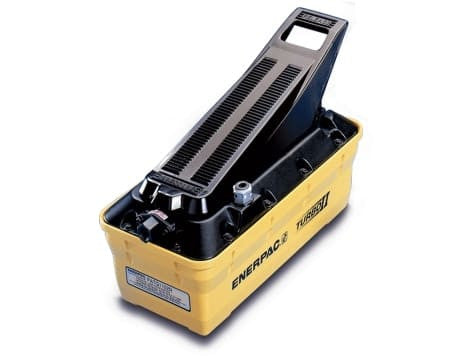

For compressed-air workholding, PATG1102N packages integrated treadle control with a 127 in³ reservoir and Enerpac's 10,000 psi output characteristics.
This model belongs to the 10,000 psi Turbo II group rather than the 3,000/5,000 psi workholding versions. Enerpac lists 10 in³/min @ 10,000 psi at full pressure, so every connected hose, valve and cylinder must be suitable for the 10,000 psi system rating.
Treadle Operation Versus Remote Pendant Control
PATG1102N is the compact PATG configuration, using a 127 in³ reservoir and an integrated treadle for single-acting advance, hold and retract. It is the smallest oil-capacity choice when the fixture can stay within that reservoir volume.
PATG1105N is the nearest larger-reservoir alternative (230 in³).
Specifications
| Pump Series | Turbo II |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 10 in³/min @ 10,000 psi |
| Reservoir Capacity | 127 in³ |
| Pump Operation | Foot / Hand Operated |
| Valve Configuration | 3-Way, 3-Position Treadle |
| Valve Operation | Foot / Hand Treadle |
| Cylinder Compatibility | Single-Acting |
| Air Pressure Range | 40–125 psi |
| Air Consumption | 12 scfm |
