PATG Selection by Reservoir and Flow

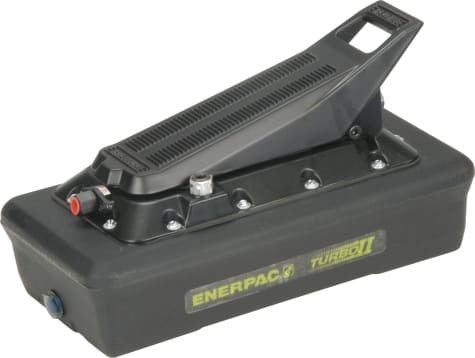

PATG1105N places a 230 in³ reservoir behind the PATG three-position treadle. That makes it a mid-capacity single-acting package for users who want local foot/hand control without moving up to the 462 in³ reservoir.
PATG1105N should be viewed as a specific workholding power-unit configuration rather than a generic air pump: integrated treadle control, 230 in³ oil capacity and a 10,000 psi pressure class.
PATG1102N is the nearest smaller-reservoir alternative (127 in³).
This model belongs to the 10,000 psi Turbo II group rather than the 3,000/5,000 psi workholding versions. Enerpac lists 10 in³/min @ 10,000 psi at full pressure, so every connected hose, valve and cylinder must be suitable for the 10,000 psi system rating.
Specifications
| Pump Series | Turbo II |
|---|---|
| Power Source | Compressed Air |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 10 in³/min @ 10,000 psi |
| Reservoir Capacity | 230 in³ |
| Pump Operation | Foot / Hand Operated |
| Valve Configuration | 3-Way, 3-Position Treadle |
| Valve Operation | Foot / Hand Treadle |
| Cylinder Compatibility | Single-Acting |
| Air Pressure Range | 40–125 psi |
| Air Consumption | 12 scfm |
