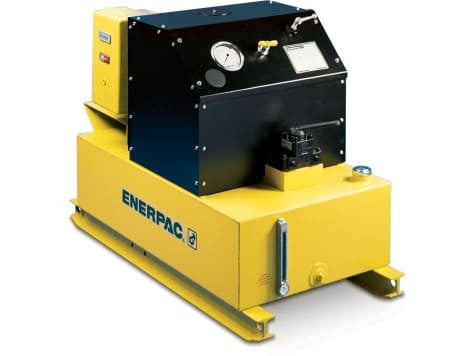

The value of PEM8418C is in the exact combination of controls and power it provides. This Enerpac 8000-Series Electric Hydraulic Pump is built around double-acting advance / hold / retract operation. The hold position is useful in a double-acting circuit when the cylinder must be stopped between powered advance and powered return movements.
The defining characteristic of the 8000 platform is scale: high-flow output, a large reservoir and a motor sized for demanding hydraulic circuits. This model is built for 460V, three phase, 60 Hz power, making the electrical supply an important distinction from otherwise similar variants. Available oil volume is set by the 18 gal reservoir, so the connected equipment’s oil requirement should be verified before final selection.
Application Fit for PEM8418C
Verify site power against the 460V requirement; a nearby suffix may represent a different electrical version.
A practical comparison is PEM8418. Between the two, input voltage is 460V on PEM8418C versus 230V on PEM8418. That gives the buyer a concrete reason to choose one model over the other.
Specifications
| Pump Series | 8000 Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 2.0 gal/min @ 10,000 psi |
| Reservoir Capacity | 18 gal |
| Valve Model | VM-4 |
| Valve Configuration | 4-way, 3-position manual valve |
| Valve Operation | Manual |
| Cylinder Compatibility | Double-Acting |
| Voltage | 460V |
| Phase | Three Phase |
| Frequency | 60 Hz |
