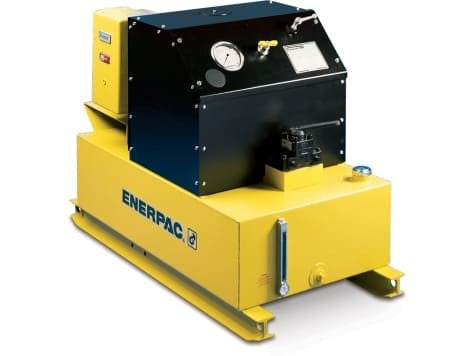

PER8418 occupies a distinct point in the Enerpac 8000-Series Electric Hydraulic Pump family because of its double-acting advance / hold / retract operation configuration. Its four-way style of control is appropriate where both directions are hydraulically powered, while the center hold position allows movement to be paused between commands.
Why PER8418 Is Its Own Configuration
Compare this model with PER8418C if the choices look similar. input voltage is 230V on PER8418 versus 460V on PER8418C. That distinction is more important than the shared series name when matching the pump to the system.
The 8000 Series is built for high-volume hydraulic work. Its large reservoir and high rated flow distinguish it from the smaller portable pump families. Hydraulic direction comes from a 4-way, 3-position solenoid valve, matched to double-acting service and advance / hold / retract operation. This model is built for 230V, three phase, 60 Hz power, making the electrical supply an important distinction from otherwise similar variants.
Confirm that the connected equipment uses the double-acting circuit this model is configured to control.
Specifications
| Pump Series | 8000 Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 2.0 gal/min @ 10,000 psi |
| Reservoir Capacity | 18 gal |
| Valve Model | VE43 |
| Valve Configuration | 4-way, 3-position solenoid valve |
| Valve Operation | Solenoid |
| Cylinder Compatibility | Double-Acting |
| Voltage | 230V |
| Phase | Three Phase |
| Frequency | 60 Hz |
