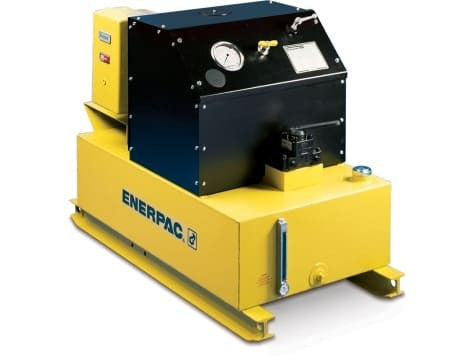

If double-acting advance / hold / retract operation is the defining requirement, PER8418C is the Enerpac 8000-Series Electric Hydraulic Pump version to evaluate. The hold position is useful in a double-acting circuit when the cylinder must be stopped between powered advance and powered return movements.
Before Specifying PER8418C
The 8000 Series is built for high-volume hydraulic work. Its large reservoir and high rated flow distinguish it from the smaller portable pump families. For cycle planning, the key output figure is 2.0 gal/min @ 10,000 psi; the motor size is 12.5 hp. Hydraulic direction comes from a 4-way, 3-position solenoid valve, matched to double-acting service and advance / hold / retract operation.
To avoid selecting a near-match with the wrong configuration, compare PER8418C with PER8418: input voltage is 460V on PER8418C versus 230V on PER8418.
Verify site power against the 460V requirement; a nearby suffix may represent a different electrical version.
Specifications
| Pump Series | 8000 Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 2.0 gal/min @ 10,000 psi |
| Reservoir Capacity | 18 gal |
| Valve Model | VE43 |
| Valve Configuration | 4-way, 3-position solenoid valve |
| Valve Operation | Solenoid |
| Cylinder Compatibility | Double-Acting |
| Voltage | 460V |
| Phase | Three Phase |
| Frequency | 60 Hz |
