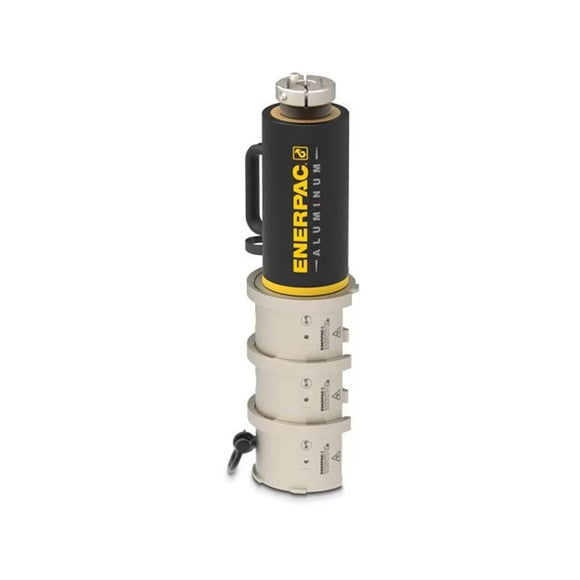

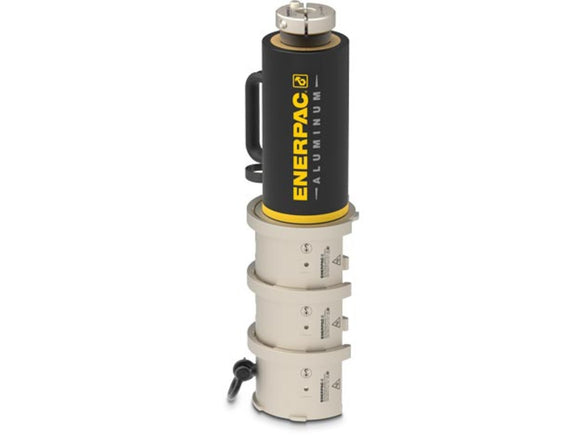

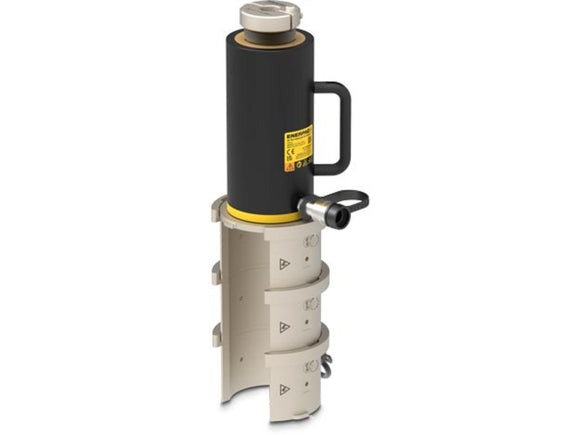

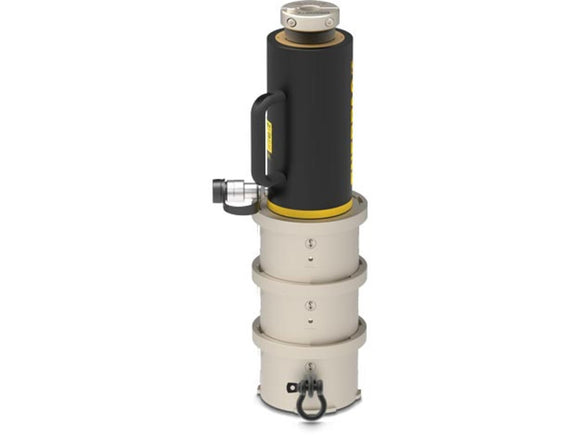

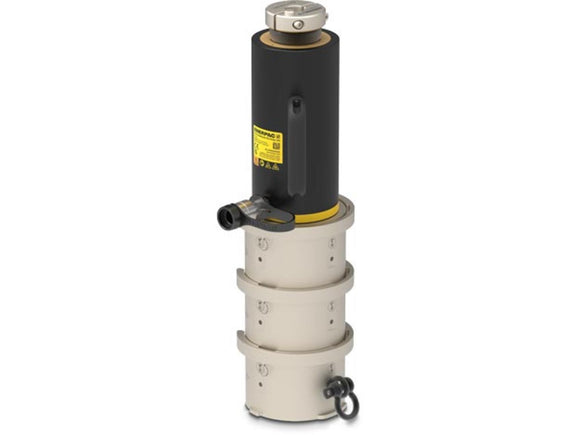

The Enerpac PPH40 uses a hollow hydraulic cylinder and modular column sections to extract pins from heavy equipment. Its quick nut attaches to a correctly sized threaded pulling rod.
Key specifications
- Pulling capacity: 40 tons
- Cylinder stroke: 3.94" (100 mm)
- Cylinder action: single-acting, spring return
- Maximum hydraulic pressure: 10,000 psi
- Standard quick-nut thread: 1-1/4"-12 UNF
Included components
- 1 × 40-ton hollow hydraulic cylinder with coupler
- 3 × column sections
- 1 × 1-1/4"-12 UNF quick nut
- 1 × eyebolt
- 1 × shackle
- 1 × storage case
Before ordering
Confirm pin access, threaded pulling-rod size, column configuration and a suitable reaction surface. The pulling rod, hydraulic pump and hose are supplied separately. Use a compatible pressure-release or 3-way pump valve.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Product Type | Pin Puller |
|---|---|
| Load Capacity | 40 Ton |
| Stroke | 3.94 in |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Hydraulic |
| Collapsed Height A1 | 22.91 in |
| Collapsed Height A2 | 24.21 in |
| Cylinder Oil Capacity | 31.18 in³ |
| Extended Height B1 | 26.89 in |
| Extended Height B2 | 28.15 in |
| Recommended Pump Series | SC, XC2, PATG, ZU4, ZE2 |
| Weight | 22.1 lb |
