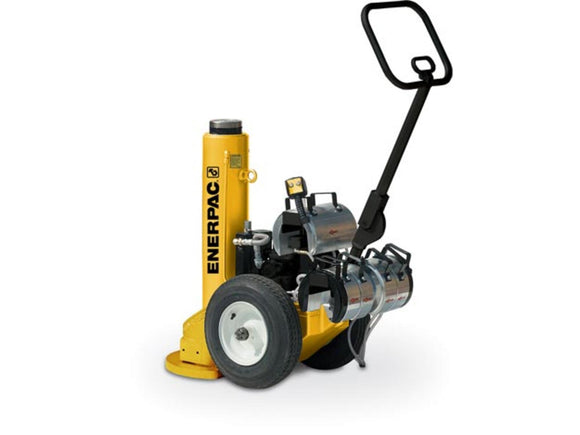

The Enerpac PRAMA10016L is an air-powered POW’R-RISER mobile lifting jack with manual valve control for suitable heavy-load lifting tasks.
Key specifications
- Lifting capacity: 100 tons
- Stroke: 16"
- Minimum height: 26"
- Power source: compressed air
- Control valve: manual
- Specified air supply: 80 psi, 50 scfm
Before ordering
Confirm load geometry, starting clearance, stable support and the available air supply. Select approved extensions and mechanical locking accessories separately; follow the model-specific stacking limits.
Repair kits and related equipment
- 54401K cylinder seal kit — For the specified 41917SR cylinder assembly in the PRA_A10016L jack family. Confirm the installed cylinder assembly before ordering.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Product Type | POW'R-RISER Jack Pneumatic |
|---|---|
| Load Capacity | 100 Ton |
| Stroke | 16 in |
| Maximum Operating Pressure | 10,000 psi |
| Power Source | Air |
| Valve Configuration | Manual |
| Base Dimension (W x L) | 24 x 18 in |
| Collapsed Height | 26 in |
| Collapsed Height (A) | 26 in |
| Handle Height | 56 in |
| Jack Capacity Advance | 100 ton |
| Max Stack Height with Extensions | 21 in |
| Outside Diameter (B) | 7 in |
| Saddle Diameter (D) | 4 in |
| Weight | 510 lb |
