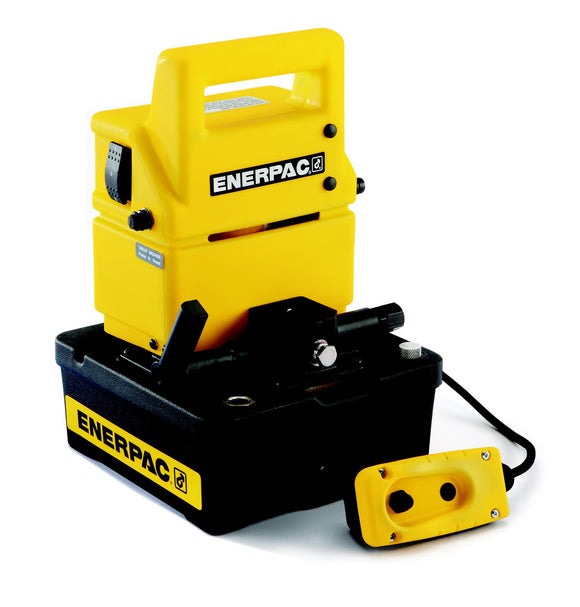

The selection case for PUD1300E starts with single-acting advance / hold / retract operation. This Enerpac Economy Electric Hydraulic Pump is one specific hydraulic and electrical arrangement within the broader family. This is a hold-capable single-acting configuration, which matters when the application needs to stop and maintain cylinder position before pressure is released for return.
Enerpac’s PUD models are the remotely controlled dump-valve members of the compact PU economy pump family. Remote pendant operation allows the operator to remain closer to the hydraulic work while controlling the pump. Valve selection on this model is deliberate: an electric dump-and-hold valve handles advance / hold / retract operation for single-acting equipment.
Valve, Reservoir and Power Fit for PUD1300E
Confirm that the connected equipment uses the single-acting circuit this model is configured to control.
If the shortlist includes PUD1300B, focus on the configuration change: input voltage is 230V on PUD1300E versus 115V on PUD1300B. The remaining shared family characteristics should not obscure that difference.
This model is built for 230V, single phase, 50/60 Hz power, making the electrical supply an important distinction from otherwise similar variants.
Specifications
| Pump Series | PUD Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 20 in³/min @ 10,000 psi |
| Reservoir Capacity | 0.5 gal |
| Valve Configuration | Electric dump-and-hold valve |
| Valve Operation | Solenoid |
| Cylinder Compatibility | Single-Acting |
| Voltage | 230V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
