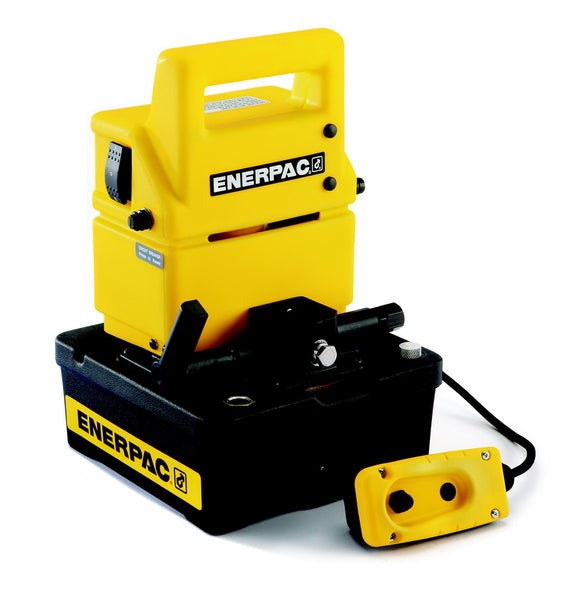

PUJ1200E is an Enerpac Economy Electric Hydraulic Pump configured around single-acting advance / retract operation. The 0.5 gal reservoir is at the smaller end of this series, which can reduce unnecessary oil volume when the connected circuit does not require one of the larger reservoir options.
Enerpac positions the PU economy pump family for small to medium cylinders and hydraulic tools, with a compact package intended for easy transport. Power input is 230V, single phase, 50/60 Hz. That requirement should be matched to the facility, generator or jobsite supply. Available oil volume is set by the 0.5 gal reservoir, so the connected equipment’s oil requirement should be verified before final selection.
To avoid selecting a near-match with the wrong configuration, compare PUJ1200E with PUJ1200B: input voltage is 230V on PUJ1200E versus 115V on PUJ1200B.
Confirm that the connected equipment uses the single-acting circuit this model is configured to control.
Specifications
| Pump Series | PUJ Series |
|---|---|
| Power Source | Electric |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 20 in³/min @ 10,000 psi |
| Reservoir Capacity | 0.5 gal |
| Valve Configuration | 3-way, 2-position manual valve |
| Valve Operation | Manual |
| Cylinder Compatibility | Single-Acting |
| Voltage | 230V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
