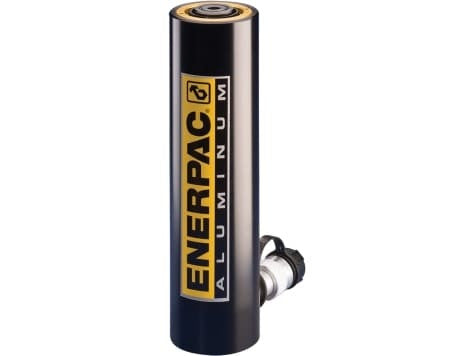

RAC-206 Cylinder, Aluminum, 20 Ton, 6"
Model : RAC206 Series : RAC Product Lines : Industrial Tools Composite bearings prevent metal-to-metal contact, increasing cylinder life and resistance to side-loads of up to 10% Hard coat finish on all surfaces resists damage and extends cylinder life For protection against load-induced damage, a saddle is standard on all models and a steel baseplate is standard on models 20-ton and above. Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity High-strength return spring for rapid cylinder retraction CR-400 coupler and dust cap included on all models All cylinders meet ASME B-30.1 standards
RAC Series Single Acting Aluminum Cylinders Cut Sheet
Model : RAC206 Series : RAC Product Lines : Industrial Tools Composite bearings prevent metal-to-metal contact, increasing cylinder life and resistance to side-loads of up to 10% Hard coat finish on all surfaces resists damage and extends cylinder life For protection against load-induced damage, a saddle is standard on all models and a steel baseplate is standard on models 20-ton and above. Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity High-strength return spring for rapid cylinder retraction CR-400 coupler and dust cap included on all models All cylinders meet ASME B-30.1 standards
Specifications
| Load Capacity | 24.2 Ton |
|---|---|
| Cylinder Type | Aluminum Hydraulic Cylinders |
| Cylinder Action | Single Acting |
| Return Type | Spring Return |
| Cylinder Material | Aluminum |
| Plunger Type | Solid |
| Cylinder Stroke | 5.91 in |
