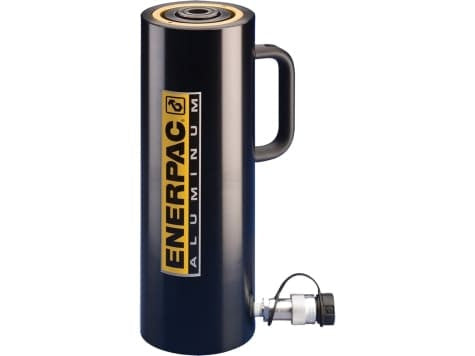

The Enerpac RAC502 is an aluminum hydraulic cylinder intended for high-capacity lifting where reduced cylinder weight helps with transport and positioning. This model is specified with a rated capacity of 54.9 tons and a stroke of 1.97 in.
Key specifications
- Capacity: 54.9 tons
- Stroke: 1.97 in.
- Series: RAC
Product features
- Composite bearings prevent metal-to-metal contact, increasing cylinder life and resistance to side-loads of up to 10%.
- Hard coat finish on all surfaces resists damage and extends cylinder life.
- Handles included on all models 30 tons and above.
- For protection against load-induced damage, a saddle is standard on all models and a steel baseplate is standard on models 20-ton and above.
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity.
Selection considerations
These cylinders are useful where tool weight matters. Final selection should still be based on load, travel, setup geometry and hydraulic compatibility.
Specifications
| Load Capacity | 54.9 Ton |
|---|---|
| Cylinder Type | Aluminum Hydraulic Cylinders |
| Cylinder Action | Single Acting |
| Return Type | Spring Return |
| Cylinder Material | Aluminum |
| Plunger Type | Solid |
| Cylinder Stroke | 1.97 in |
