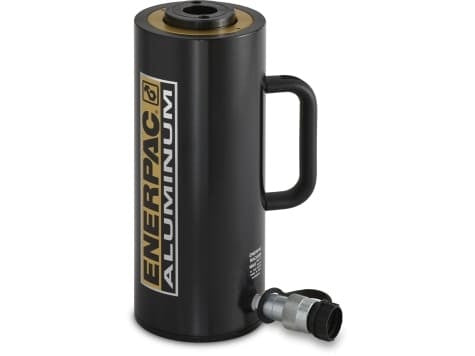

The Enerpac RACH206 is a 20-ton-class RACH-Series hydraulic cylinder with a 5.91" stroke. Its hollow plunger accommodates a compatible rod or cable for properly configured pulling or tensioning applications.
Key specifications
- Capacity class: 20 tons
- Stroke: 5.91"
- Action: single-acting
- Return: spring
- Maximum operating pressure: 10,000 psi
- Plunger: hollow
- Cylinder material: aluminum
Before ordering
Match load, stroke, starting clearance and pump oil volume to the complete application. Pump, hoses and any application-specific fixtures are sold separately.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Product Family | Hydraulic Cylinders |
|---|---|
| Series | RACH |
| Cylinder Type | Hollow Plunger Hydraulic Cylinders |
| Load Capacity | 25.4 Ton |
| Cylinder Stroke | 5.91 in |
| Cylinder Action | Single Acting |
| Return Type | Spring Return |
| Cylinder Material | Aluminum |
| Plunger Type | Hollow |
| Lock Nut | No |
| Low Height | No |
| Capacity Range | 11-25 Ton, 26-50 Ton |
