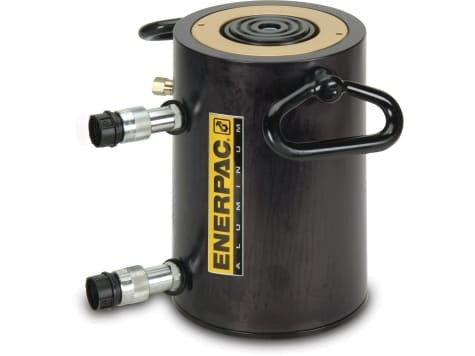

The Enerpac RAR2010 is a 20 ton double-acting aluminum hydraulic cylinder with a 9.84 in stroke, rated for 10,000 psi. Collapsed height is 15.32 in and it weighs 21.6 lb.
RAR cylinders are double-acting: one port advances the plunger and a second port retracts it hydraulically, giving faster and more controlled retraction than spring-return cylinders, regardless of hose length. Aluminum construction keeps the weight down and resists corrosion better than steel. Rated for 10,000 psi and compliant with ASME B30.1.
Before you order
For the longest service life, Enerpac recommends using no more than 80 percent of the rated capacity and stroke. Always use a gauge to monitor system pressure.
Frequently asked questions
What is the capacity and stroke of the Enerpac RAR2010?
20 tons at 10,000 psi, with 9.84 in of stroke and a collapsed height of 15.32 in.
Is the RAR2010 single-acting or double-acting?
Double-acting with hydraulic return. Use a pump with a 4-way valve and two hoses, one to advance and one to retract the plunger.
BuyEnerpac.com is an authorized Enerpac distributor. This item typically ships within 2-3 days. Questions about fit or application? Call (704) 463-1070.
Specifications
| Product Family | Hydraulic Cylinders |
|---|---|
| Series | RAR |
| Cylinder Type | Aluminum Hydraulic Cylinders |
| Load Capacity | 24.2 Ton |
| Cylinder Stroke | 9.84 in |
| Cylinder Action | Double Acting |
| Return Type | Hydraulic Return |
| Cylinder Material | Aluminum |
| Plunger Type | Solid |
| Lock Nut | No |
| Low Height | No |
| Capacity Range | 11-25 Ton |
