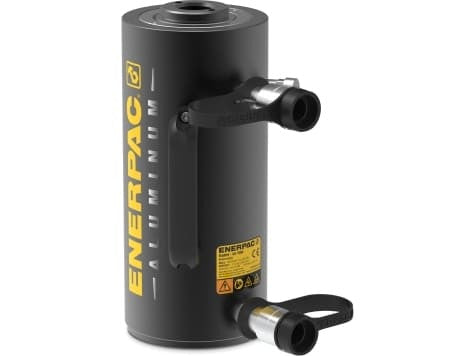

Cylinder, Aluminum, 30 Ton, 2", D/A, Hollow
Model : RARH302 Series : RARH Product Lines : Industrial Tools Lighter and shorter collapsed height than equivalent RACH single-acting models Double-acting for rapid retraction, regardless of hose lengths or system losses Built-in safety valve prevents accidental overpressurization Hollow plunger design allows for both pull and push forces Composite bearings increase cylinder life and side load resistance Hard coat finish on all surfaces resists damage and extends cylinder life Handles included on all models Floating center tube increases seal life Steel baseplate and saddle for protection against load-induced damage Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity CR400 coupler and dust cap included on all models All cylinders meet ASME B-30.1 standards
Model : RARH302 Series : RARH Product Lines : Industrial Tools Lighter and shorter collapsed height than equivalent RACH single-acting models Double-acting for rapid retraction, regardless of hose lengths or system losses Built-in safety valve prevents accidental overpressurization Hollow plunger design allows for both pull and push forces Composite bearings increase cylinder life and side load resistance Hard coat finish on all surfaces resists damage and extends cylinder life Handles included on all models Floating center tube increases seal life Steel baseplate and saddle for protection against load-induced damage Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity CR400 coupler and dust cap included on all models All cylinders meet ASME B-30.1 standards
Specifications
| Product Family | Hydraulic Cylinders |
|---|---|
| Series | RARH |
| Cylinder Type | Hollow Plunger Hydraulic Cylinders |
| Load Capacity | 30 Ton |
| Cylinder Stroke | 1.97 in |
| Cylinder Action | Double Acting |
| Return Type | Hydraulic Return |
| Cylinder Material | Aluminum |
| Plunger Type | Hollow |
| Lock Nut | No |
| Low Height | No |
| Capacity Range | 26-50 Ton |
| Weight | 19.6 lb |
