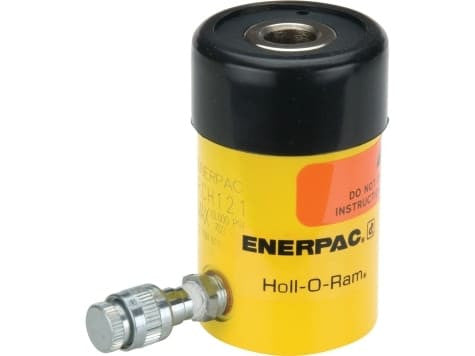

The Enerpac RCH123 is a hollow plunger hydraulic cylinder intended for pushing, pulling, tensioning and testing setups that benefit from a hollow plunger. This model is specified with a rated capacity of 13.8 tons and a stroke of 3.00 in.
Key specifications
- Capacity: 13.8 tons
- Stroke: 3.00 in.
- Series: RCH
Product features
- Single-acting spring return Nickel-plated, floating center tube on models over 20 tons increases product life.
- Baked enamel finish for increased corrosion resistance Collar threads for easy fixturing Features CR400 Coupler.
Selection considerations
Select by force and travel first, then confirm the through-hole requirement and the hydraulic circuit needed for the application.
Specifications
| Load Capacity | 13.8 Ton |
|---|---|
| Cylinder Type | Hollow Plunger Hydraulic Cylinders |
| Cylinder Action | Single Acting |
| Return Type | Spring Return |
| Cylinder Material | Steel |
| Plunger Type | Hollow |
| Cylinder Stroke | 3.00 in |
