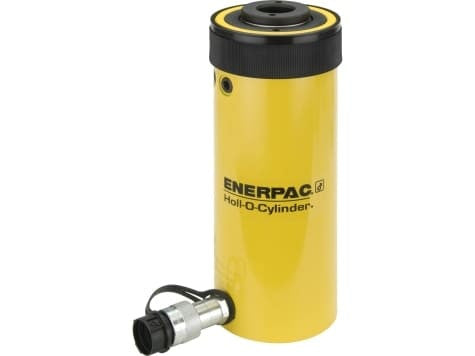

The Enerpac RCH306 is a 30-ton-class RCH-Series hollow-plunger hydraulic cylinder with a 6.13" stroke. Its center hole accommodates a compatible rod or cable for properly configured pulling and tensioning applications.
Key specifications
- Capacity class: 30 tons
- Maximum cylinder force: 36.1 US tons at rated pressure
- Stroke: 6.13"
- Collapsed height: 13.00"
- Center-hole diameter: 1.31"
- Action: single-acting
- Return: spring
- Maximum operating pressure: 10,000 psi (700 bar)
- Included coupler: CR400 female half
Included components
- RCH306 hollow-plunger cylinder
- CR400 female coupler
Before ordering
Match load, stroke, starting clearance and the required rod clearance. Verify saddle, rod and fixture compatibility for the complete assembly. Match the CR400 high-flow coupler to the hose. Pump and hose are sold separately.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Load Capacity | 36.1 Ton |
|---|---|
| Cylinder Type | Hollow Plunger Hydraulic Cylinders |
| Cylinder Action | Single Acting |
| Return Type | Spring Return |
| Cylinder Material | Steel |
| Plunger Type | Hollow |
| Cylinder Stroke | 6.13 in |
