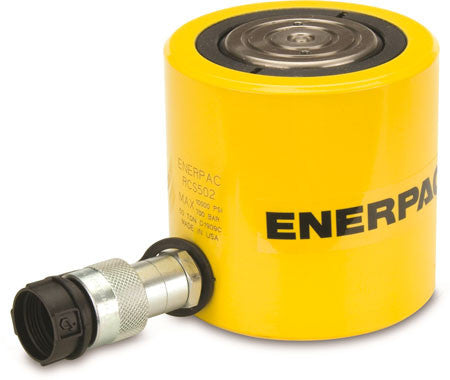

The Enerpac RCS502 is a low-height hydraulic cylinder intended for lifting where available setup height is limited. This model is specified with a rated capacity of 48.1 tons and a stroke of 2.38 in.
Key specifications
- Capacity: 48.1 tons
- Stroke: 2.38 in.
Selection considerations
Measure the available clearance under the load first, then select capacity and stroke with adequate margin for the application.
Specifications
| Load Capacity | 48.1 Ton |
|---|---|
| Cylinder Type | Low Height Hydraulic Cylinders |
| Cylinder Action | Single Acting |
| Return Type | Spring Return |
| Cylinder Material | Steel |
| Plunger Type | Solid |
| Cylinder Stroke | 2.38 in |
