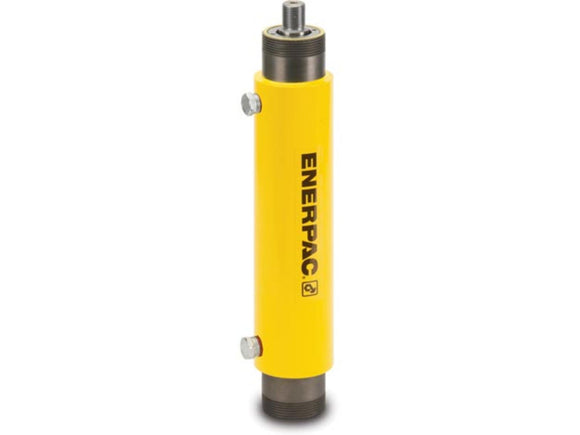

The Enerpac RD96 is an RD-Series precision production hydraulic cylinder. Double-acting operation provides hydraulic force in both directions for suitable fixture and production applications.
Key specifications
- Advance capacity class: 9 tons
- Retract capacity class: 5 tons
- Stroke: 6.13"
- Action: double-acting
- Return: hydraulic
- Maximum operating pressure: 10,000 psi
Before ordering
Match advance and retract loads, travel, mounting threads and pump oil volume to the application. Use a compatible four-way directional valve and both hydraulic ports. Mounting attachments are sold separately.
Repair kits and related equipment
- RD910K2 repair kit — For existing cylinders with date or product codes beginning D and the standard seal configuration; Viton versions use a different kit. Confirm the equipment identification markings and required seal type before ordering.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Load Capacity | 9 Ton |
|---|---|
| Cylinder Type | Precision Production Hydraulic Cylinders |
| Cylinder Action | Double Acting |
| Return Type | Hydraulic Return |
| Cylinder Material | Steel |
| Plunger Type | Solid |
| Cylinder Stroke | 6.13 in |
