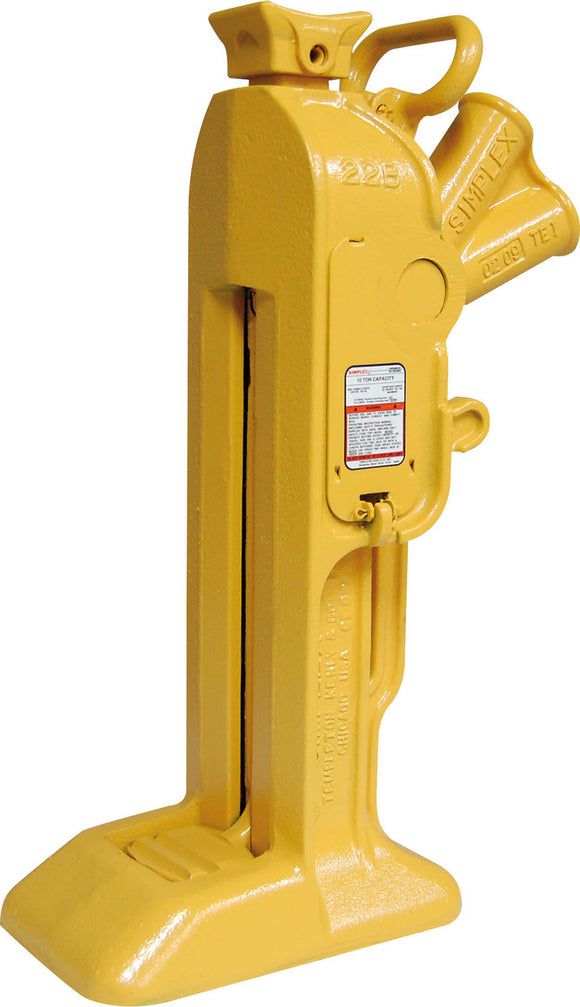

The Simplex RJ22B is a mechanically operated ratchet jack with a steel housing. Its ratchet mechanism raises or lowers the load within the manufacturer operating limits.
Key specifications
- Lifting capacity: 10 tons
- Supporting capacity: 10 tons
- Travel: 12"
- Closed overall height: 21.62"
- Housing material: steel
- Recommended lever bar: SLB60, sold separately
Before ordering
Confirm the lifting point, starting height, stable base and lever clearance. Lifting and supporting ratings must be applied to the correct operation. Select the recommended lever bar separately.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Load Capacity | 10 Ton |
|---|---|
| Power Source | Mechanical |
| Capacity Range | 6-10 Ton |
| Handle Effort per Ton | 30 lb |
| Jack Housing Material | Steel |
| Minimum Height Toe | 2 in |
| Weight | 70 lb |
