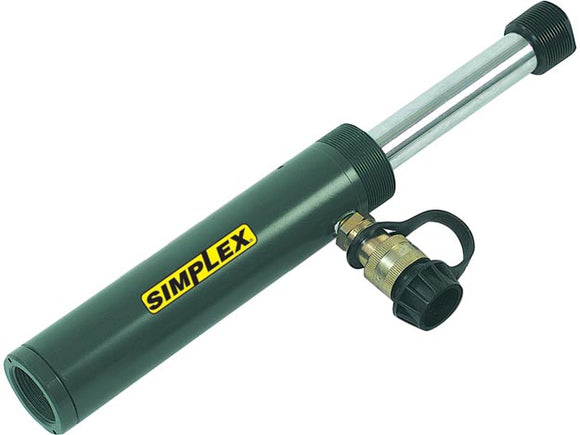

The Simplex RP55A is a 5-ton, single-acting hydraulic pull cylinder with a 5.5 in stroke. Pull cylinders apply force as the plunger retracts, so they are used for pulling, clamping and tensioning jobs where a push cylinder won't fit the setup. Simplex is part of the Enerpac family of brands.
Key specifications
- Model: RP55A
- Brand: Simplex (Enerpac)
- Capacity: 5 tons
- Action: single-acting
- Cylinder type: pull
- Stroke: 5.5 in
Service and repair
Rebuilding an existing RP55A? Order the RP55AK repair kit for the RP55A.
Before ordering
Match the cylinder's capacity and stroke to your load and travel, and confirm your pump, hose and couplers are compatible. Pump and hose are sold separately. Need help choosing? Call Horizon Hydraulic Sales & Service at (704) 463-1070.
Specifications
| Product Family | Hydraulic Cylinders |
|---|---|
| Series | RP |
| Product Type | Pull Cylinder |
| Cylinder Type | Hydraulic Pull Cylinders |
| Load Capacity | 5 Ton |
| Cylinder Stroke | 5.5 in |
| Maximum Operating Pressure | 10,000 psi |
| Cylinder Action | Single Acting |
| Return Type | Spring Return |
| Cylinder Material | Steel |
| Plunger Type | Solid |
| Lock Nut | No |
| Low Height | No |
| Collapsed Height | 11.88 in |
| Weight | 10 lb |
