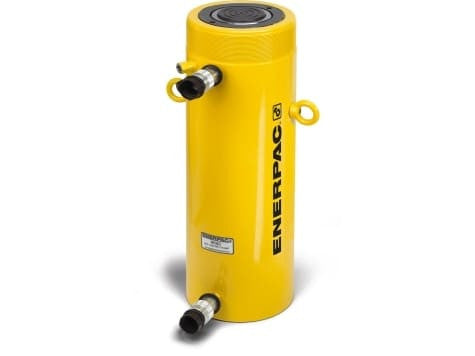

The Enerpac RR2006 is a 221 ton double-acting hydraulic cylinder with a 6 in stroke, rated for 10,000 psi. It weighs 325 lb.
RR cylinders are double-acting steel cylinders for jobs that need fast, precisely controlled retraction, including long-stroke lifting and high-cycle work in construction and manufacturing. Collar threads, plunger threads, base mounting holes and a removable saddle make them easy to fixture and to fit with optional accessories. Every RR cylinder is rated for 10,000 psi and complies with ASME B30.1.
Key features
- Double-acting with hydraulic return for fast, controlled retraction
- Collar threads, plunger threads and base mounting holes for fixturing
- Removable saddle; optional flat, grooved and tilt saddles on models up to 75 ton
- Rated for 10,000 psi and compliant with ASME B30.1
Before you order
For the longest service life, Enerpac recommends using no more than 80 percent of the rated capacity and stroke. Always use a gauge to monitor system pressure.
Frequently asked questions
What is the capacity and stroke of the Enerpac RR2006?
221 tons at 10,000 psi, with 6 in of stroke.
Is the RR2006 single-acting or double-acting?
Double-acting with hydraulic return. Use a pump with a 4-way valve and two hoses, one to advance and one to retract the plunger.
BuyEnerpac.com is an authorized Enerpac distributor. This item typically ships within 2-3 days. Questions about fit or application? Call (704) 463-1070.
Specifications
| Product Family | Hydraulic Cylinders |
|---|---|
| Series | RR |
| Cylinder Type | Long Stroke Hydraulic Cylinders |
| Load Capacity | 221 Ton |
| Cylinder Stroke | 6.00 in |
| Cylinder Action | Double Acting |
| Return Type | Hydraulic Return |
| Cylinder Material | Steel |
| Plunger Type | Solid |
| Lock Nut | No |
| Low Height | No |
| Capacity Range | 101-200 Ton, 201-500 Ton |
