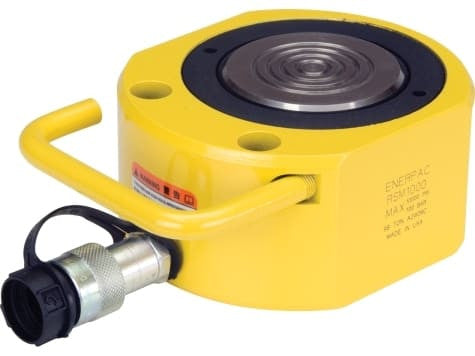

The Enerpac RSM1500 is a 150-ton-class RSM-Series hydraulic cylinder for applications with limited starting clearance. It combines a 3.94" collapsed height with a 0.63" stroke and spring return.
Key specifications
- Capacity class: 150 tons
- Maximum cylinder force: 153.4 US tons at rated pressure
- Stroke: 0.63"
- Collapsed height: 3.94"
- Oil capacity: 19.17 in³
- Action: single-acting
- Return: spring
- Maximum operating pressure: 10,000 psi (700 bar)
- Included coupler: CR400 female half
- Plunger: grooved end
Included components
- RSM1500 hydraulic cylinder
- CR400 female coupler
- Coupler dust cap
Before ordering
Check the starting clearance, required travel and load before choosing this cylinder. Size the pump reservoir for the cylinder and hose oil volume, and confirm hose and accessory compatibility. Pump and hose are sold separately.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Load Capacity | 153.4 Ton |
|---|---|
| Cylinder Type | Low Height Hydraulic Cylinders |
| Cylinder Action | Single Acting |
| Return Type | Spring Return |
| Cylinder Material | Steel |
| Plunger Type | Solid |
| Cylinder Stroke | 0.63 in |
