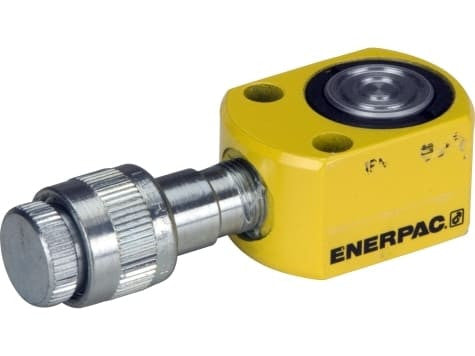

The Enerpac RSM50 is a 5-ton-class RSM-Series hydraulic cylinder for applications with limited starting clearance. It combines a 1.28" collapsed height with a 0.25" stroke and spring return.
Key specifications
- Capacity class: 5 tons
- Maximum cylinder force: 4.9 US tons at rated pressure
- Stroke: 0.25"
- Collapsed height: 1.28"
- Oil capacity: .25 in³
- Action: single-acting
- Return: spring
- Maximum operating pressure: 10,000 psi (700 bar)
- Included coupler: AR400 female half
- Plunger: grooved end
Included components
- RSM50 hydraulic cylinder
- AR400 female coupler
- Coupler dust cap
Before ordering
Check the starting clearance, required travel and load before choosing this cylinder. Match the included coupler series to the hose; the RSM50 uses an AR400 Spee-D coupler. Pump and hose are sold separately.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Product Family | Hydraulic Cylinders |
|---|---|
| Series | RSM |
| Cylinder Type | Low Height Hydraulic Cylinders |
| Load Capacity | 4.9 Ton |
| Cylinder Stroke | 0.25 in |
| Cylinder Action | Single Acting |
| Return Type | Spring Return |
| Cylinder Material | Steel |
| Plunger Type | Solid |
| Lock Nut | No |
| Low Height | Yes |
| Capacity Range | Up to 5 Ton |
