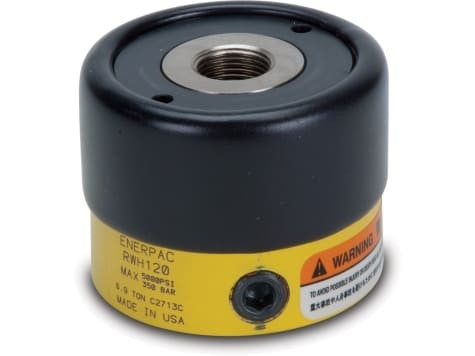

The Enerpac RWH120 is a single-acting workholding hydraulic cylinder for suitable fixture applications. Its hollow plunger accommodates a compatible rod through the cylinder.
Key specifications
- Cylinder force at 5,000 psi: 13,800 lb
- Stroke: 0.32"
- Maximum operating pressure: 5,000 psi
- Action: single-acting
- Return: spring
- Plunger: hollow
- Center-hole diameter: 0.77"
Before ordering
Verify required force at the actual operating pressure, stroke, mounting threads and hydraulic connections. Pump, hoses and application-specific attachments are sold separately.
Product information is provided for general reference and may not cover every application. Confirm suitability with manufacturer specifications and qualified professional advice. Follow applicable safety requirements; this description is not a substitute for manufacturer instructions or engineering judgment.
Specifications
| Product Family | Hydraulic Workholding Cylinders |
|---|---|
| Series | RWH |
| Cylinder Type | Workholding Hollow Plunger Cylinders |
| Push Force | 13,800 lb |
| Cylinder Stroke | 0.32 in |
| Capacity Range | 6-10 Ton |
