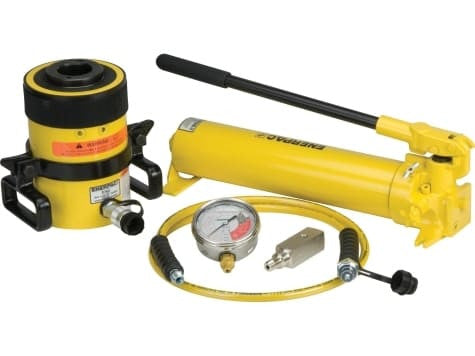

SCH603H Enerpac Hollow-Plunger Hydraulic Cylinder & Hand Pump Set uses an RCH-Series single-acting cylinder, which Enerpac specifies for both pushing and pulling work. This version provides 60 Ton capacity, 3 in of stroke and manual hydraulic power.
Cylinder Travel and Pump Choice
The hand-pump version favors simplicity: the hydraulic power source travels with the cylinder and does not depend on a shop-air connection or power outlet at the point of use.
RCH-603 raises capacity substantially to 60 tons and provides 3 inches of stroke. It is intended for higher-force push/pull work where the through-hole cylinder format is still required.
The distinguishing feature is the hollow cylinder, not merely the tonnage. Confirm that the planned setup needs push/pull capability before choosing between the hand-, foot- and air-powered RCH sets.
Specifications
| Power Source | Manual |
|---|---|
| Pump Type | Hand Pump |
| Pump Operation | Hand Operated |
| Cylinder Compatibility | Single-Acting |
| Load Capacity | 60 Ton |
| Cylinder Type | Hollow Plunger |
| Cylinder Stroke | 3 in |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
