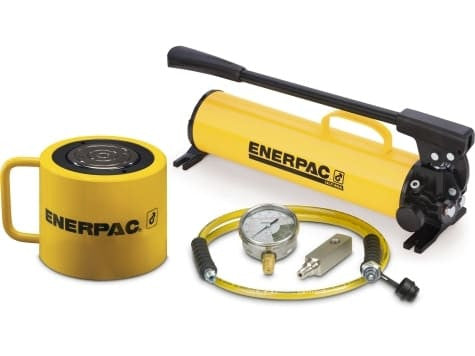

SCL1002H Enerpac Low-Height Hydraulic Cylinder & Hand Pump Set pushes the RCS low-height concept to 100-ton nominal capacity. Despite that force class, the RCS-1002 cylinder provides only 2.25 inches of stroke, showing clearly that this model is designed around high force in confined vertical space rather than long travel.
High Force Where a Taller Cylinder Will Not Fit
This is not simply a larger version of the 30- or 50-ton RCS sets. At 100 tons, cylinder size and oil demand become more significant, so the application should justify both the force requirement and the low-height geometry before a manual-pump package is selected.
The hand pump keeps the system independent of electricity and compressed air, which can be useful for occasional field lifts. For repeated operation, however, the amount of manual pumping required at this capacity is an important practical consideration.
SCL1002H is therefore best viewed as a specialized combination: very high single-acting force, short travel, low-height access and manual hydraulic power in one matched set.
Specifications
| Power Source | Manual |
|---|---|
| Pump Type | Hand Pump |
| Pump Operation | Hand Operated |
| Cylinder Compatibility | Single-Acting |
| Load Capacity | 100 Ton |
| Cylinder Type | Low Height |
| Cylinder Stroke | 2.25 in |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
