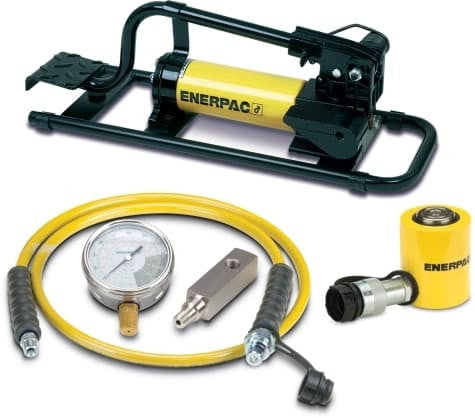

SCL101FP Enerpac Low-Height Hydraulic Cylinder & Foot Pump Set combines a compact RCS cylinder with foot-operated pumping. It provides 10 Ton nominal capacity and 1.5 in of travel for restricted-clearance work.
This version keeps the system manually powered but moves pump actuation to the foot. Selection therefore comes down to operator preference and work positioning rather than a change in cylinder capability.
What Drives the Selection
RCS-101 is the entry point in the low-height set family: 10-ton capacity with 1.5 inches of stroke. It is meant for confined access where getting under the load is more important than achieving long travel.
The RCS family should be chosen because clearance is limited, not merely because the tonnage matches. Once low-height geometry is confirmed, compare SCL101FP on capacity, stroke and pump style.
Specifications
| Power Source | Manual |
|---|---|
| Pump Type | Foot Pump |
| Pump Operation | Foot Operated |
| Cylinder Compatibility | Single-Acting |
| Load Capacity | 10 Ton |
| Cylinder Type | Low Height |
| Cylinder Stroke | 1.5 in |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
