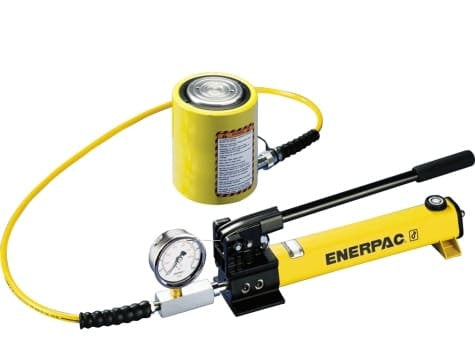

SCL101H is a manually powered RCS-Series set built for confined-space lifting and positioning. Its cylinder is rated in the 10 Ton class and provides 1.5 in of movement.
When This Version Makes Sense
RCS-101 is the entry point in the low-height set family: 10-ton capacity with 1.5 inches of stroke. It is meant for confined access where getting under the load is more important than achieving long travel.
This version is for users who value portability and direct manual control over cycle speed. No air line or electrical lead is needed to generate hydraulic pressure.
Low-height cylinders intentionally give up travel to fit into confined spaces. Verify that 1.5 in of stroke is enough for the job before choosing this set over a taller RC cylinder package.
Specifications
| Power Source | Manual |
|---|---|
| Pump Type | Hand Pump |
| Pump Operation | Hand Operated |
| Cylinder Compatibility | Single-Acting |
| Load Capacity | 10 Ton |
| Cylinder Type | Low Height |
| Cylinder Stroke | 1.5 in |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
