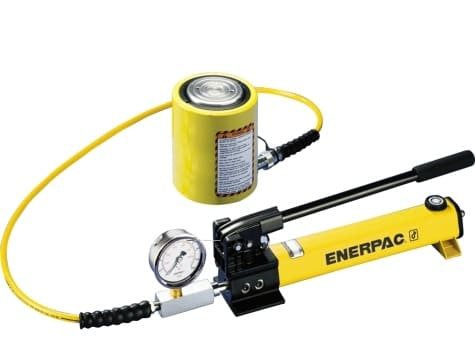

SCL201H Enerpac Low-Height Hydraulic Cylinder & Hand Pump Set is the 20-ton manual version in the RCS cylinder-pump family. Its 1.75-inch stroke keeps the cylinder focused on restricted-clearance lifting rather than long movement, while the hand pump allows the set to operate without shop air or electrical service.
A Step Up from 10 Tons Without Leaving the Low-Height Format
The RCS-201 fills the gap between Enerpac’s 10-ton and 30-ton low-height choices. It adds force over the RCS-101 while remaining a compact single-acting cylinder for machinery, maintenance and positioning jobs where a conventional-height cylinder may not fit.
Hand operation is best suited to intermittent work where portability and independence matter more than cycle speed. If the same 20-ton low-height cylinder will be cycled repeatedly, SCL201XA changes only the pumping approach by using compressed-air power.
This model should be chosen because 20-ton force and 1.75 inches of travel solve the clearance problem; the manual pump is the secondary decision.
Specifications
| Power Source | Manual |
|---|---|
| Pump Type | Hand Pump |
| Pump Operation | Hand Operated |
| Cylinder Compatibility | Single-Acting |
| Load Capacity | 20 Ton |
| Cylinder Type | Low Height |
| Cylinder Stroke | 1.75 in |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
