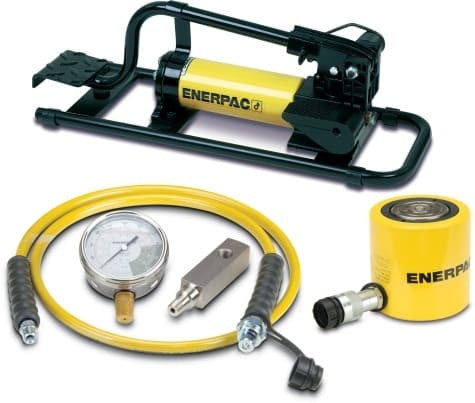

SCL302FP Enerpac Low-Height Hydraulic Cylinder & Foot Pump Set combines a compact RCS cylinder with foot-operated pumping. It provides 30 Ton nominal capacity and 2.44 in of travel for restricted-clearance work.
Cylinder Travel and Pump Choice
The foot-operated pump changes how the operator actuates the hydraulic circuit while leaving the cylinder choice unchanged. It is the alternative for users who prefer pumping by foot rather than working a hand lever.
RCS-302 combines 30-ton capacity with 2.44 inches of stroke, the greatest travel among the 10-, 20-, 30- and 50-ton RCS models listed in Enerpac’s set table.
Use this set when low installed height is essential. If the application instead needs several inches of travel, an RC general-purpose set may be the better comparison even at the same tonnage.
Specifications
| Product Family | Porta Power |
|---|---|
| Pump Type | Foot Pump |
| Cylinder Type | Low Height |
| Load Capacity | 30 Ton |
| Cylinder Stroke | 2.44 in |
| Power Source | Manual |
| Pump Operation | Foot Operated |
| Cylinder Compatibility | Single-Acting |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
