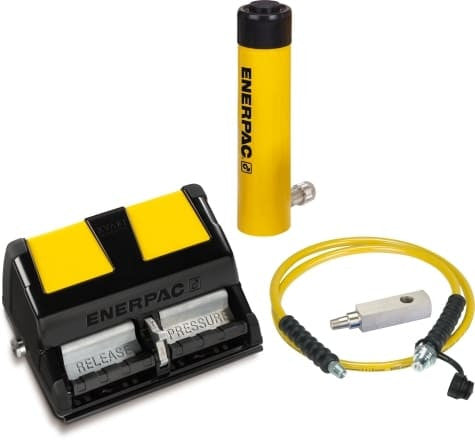

SCL302XA is the air-powered choice in the RCS low-height set family, combining 30 Ton force capacity and 2.44 in of travel with a pump driven from compressed air.
An air-powered pump is the operational advantage of this version. Where compressed air is already available, it removes repetitive manual pumping and is well suited to jobs involving repeated cylinder cycles.
A Closer Look at the Configuration
RCS-302 combines 30-ton capacity with 2.44 inches of stroke, the greatest travel among the 10-, 20-, 30- and 50-ton RCS models listed in Enerpac’s set table.
Low-height cylinders intentionally give up travel to fit into confined spaces. Verify that 2.44 in of stroke is enough for the job before choosing this set over a taller RC cylinder package.
Specifications
| Power Source | Compressed Air |
|---|---|
| Pump Type | Air Pump |
| Pump Operation | Air Operated |
| Cylinder Compatibility | Single-Acting |
| Load Capacity | 30 Ton |
| Cylinder Type | Low Height |
| Cylinder Stroke | 2.44 in |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
