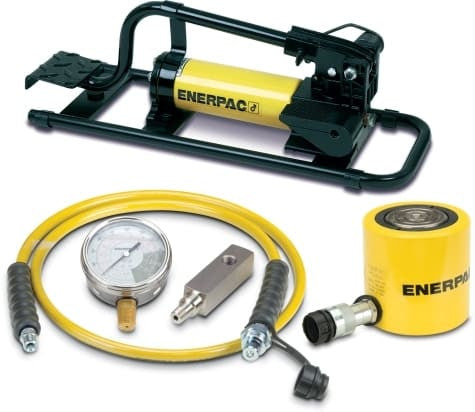

The SCL502FP configuration keeps Enerpac’s RCS low-height cylinder but substitutes foot operation for the hand pump used on the H version. The cylinder is 50 Ton with 2.38 in of stroke.
The foot-operated pump changes how the operator actuates the hydraulic circuit while leaving the cylinder choice unchanged. It is the alternative for users who prefer pumping by foot rather than working a hand lever.
When This Version Makes Sense
The RCS-502 brings 50-ton force into the low-height format with 2.38 inches of stroke. It is aimed at heavier work where a conventional RC cylinder may be too tall for the available clearance.
Low-height cylinders intentionally give up travel to fit into confined spaces. Verify that 2.38 in of stroke is enough for the job before choosing this set over a taller RC cylinder package.
Specifications
| Power Source | Manual |
|---|---|
| Pump Type | Foot Pump |
| Pump Operation | Foot Operated |
| Cylinder Compatibility | Single-Acting |
| Load Capacity | 50 Ton |
| Cylinder Type | Low Height |
| Cylinder Stroke | 2.38 in |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
