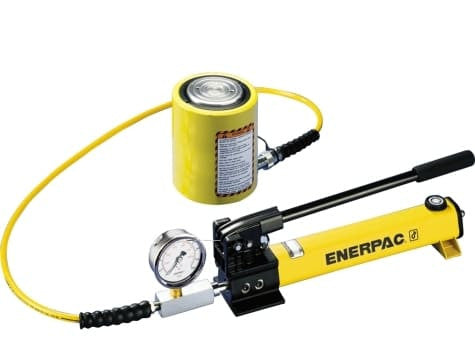

Enerpac’s low-height RCS cylinder is the centerpiece of SCL502H. Paired with a hand pump, the set offers 50 Ton capacity and 2.38 in of stroke where a taller cylinder may not fit.
Where This Set Fits
Manual hand pumping keeps the hydraulic set independent of compressed air and electrical service, which is useful for intermittent maintenance, field repairs and locations where external power is inconvenient.
The RCS-502 brings 50-ton force into the low-height format with 2.38 inches of stroke. It is aimed at heavier work where a conventional RC cylinder may be too tall for the available clearance.
Use this set when low installed height is essential. If the application instead needs several inches of travel, an RC general-purpose set may be the better comparison even at the same tonnage.
Specifications
| Power Source | Manual |
|---|---|
| Pump Type | Hand Pump |
| Pump Operation | Hand Operated |
| Cylinder Compatibility | Single-Acting |
| Load Capacity | 50 Ton |
| Cylinder Type | Low Height |
| Cylinder Stroke | 2.38 in |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
