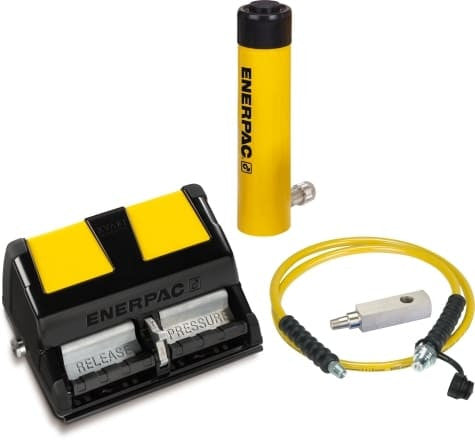

SCL502XA Enerpac Low-Height Hydraulic Cylinder & Air Pump Set pairs a compact RCS-Series cylinder with air-powered hydraulic operation. The cylinder is rated at 50 Ton and provides 2.38 in of stroke.
When This Version Makes Sense
The RCS-502 brings 50-ton force into the low-height format with 2.38 inches of stroke. It is aimed at heavier work where a conventional RC cylinder may be too tall for the available clearance.
An air-powered pump is the operational advantage of this version. Where compressed air is already available, it removes repetitive manual pumping and is well suited to jobs involving repeated cylinder cycles.
The RCS family should be chosen because clearance is limited, not merely because the tonnage matches. Once low-height geometry is confirmed, compare SCL502XA on capacity, stroke and pump style.
Specifications
| Product Family | Porta Power |
|---|---|
| Pump Type | Air Pump |
| Cylinder Type | Low Height |
| Load Capacity | 50 Ton |
| Cylinder Stroke | 2.38 in |
| Power Source | Compressed Air |
| Pump Operation | Air Operated |
| Cylinder Compatibility | Single-Acting |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
