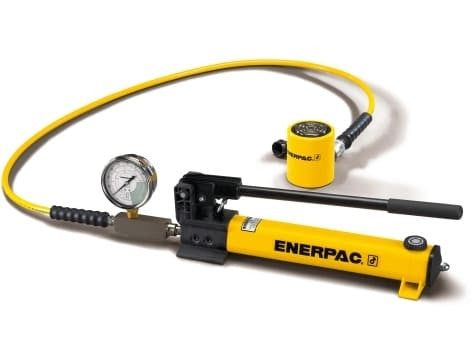

SCL302H Enerpac Low-Height Hydraulic Cylinder & Hand Pump Set combines an RCS-Series single-acting cylinder with manual hydraulic power. The 30 Ton cylinder provides 2.44 in of travel for jobs where vertical clearance is limited.
Choosing a hand pump makes the package self-contained and easy to deploy for occasional hydraulic work. The tradeoff is that larger cylinders and longer strokes require more manual pumping than powered alternatives.
Selecting the Right Version
RCS-302 combines 30-ton capacity with 2.44 inches of stroke, the greatest travel among the 10-, 20-, 30- and 50-ton RCS models listed in Enerpac’s set table.
The main selection question is whether the RCS form factor solves a clearance problem. If it does, 30 Ton capacity, 2.44 in travel and the pump type determine whether SCL302H is the appropriate version.
Specifications
| Power Source | Manual |
|---|---|
| Pump Type | Hand Pump |
| Pump Operation | Hand Operated |
| Cylinder Compatibility | Single-Acting |
| Load Capacity | 30 Ton |
| Cylinder Type | Low Height |
| Cylinder Stroke | 2.44 in |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
