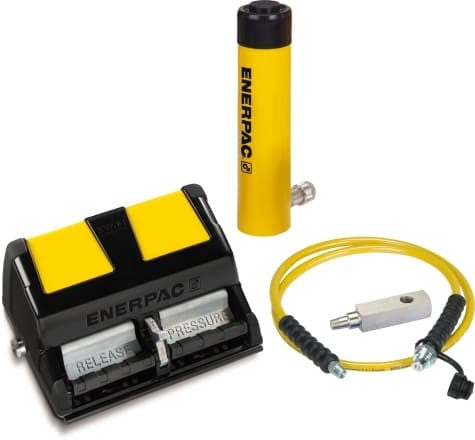

SCR1010XA is an air-powered RC-Series cylinder set intended for general hydraulic lifting and positioning. Its mechanical side is defined by 10 Ton capacity and 10.13 in of cylinder travel.
Application Fit
The RC-1010 provides the longest stroke in Enerpac’s 10-ton set group. Its 10.13 inches of travel is the reason to choose it when the task benefits from extended movement and the increased collapsed height is acceptable.
The air pump is most useful when cycle frequency or cylinder oil demand makes hand pumping less attractive. It keeps the hydraulic system portable while using compressed air as the energy source.
The RC cylinder makes this a versatile solid-plunger set rather than a specialized low-height or hollow-cylinder package. Final selection should be based on required load, usable stroke and the preferred power source.
Specifications
| Power Source | Compressed Air |
|---|---|
| Pump Type | Air Pump |
| Pump Operation | Air Operated |
| Cylinder Compatibility | Single-Acting |
| Load Capacity | 10 Ton |
| Cylinder Type | General Purpose |
| Cylinder Stroke | 10.13 in |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
