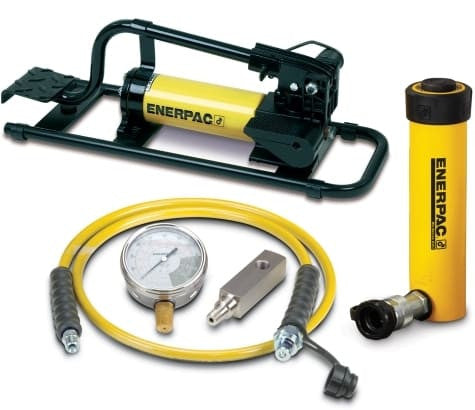

In SCR106FP, Enerpac pairs an RC single-acting cylinder with a foot pump rather than a hand or air-powered unit. The cylinder is rated in the 10 Ton class and provides 6.13 in of travel.
Application Fit
The 6.13-inch RC-106 sits between Enerpac’s 2.13- and 10.13-inch 10-ton cylinders. That middle position makes it a balanced choice when a short-stroke cylinder is too limiting but the longest version would add unnecessary height and travel.
The foot-pump arrangement is a practical middle ground for users who want a manually powered system but do not want to operate a conventional hand pump during each cycle.
Choose SCR106FP when an RC general-purpose cylinder is the right geometry and this specific combination of force, travel and pump style matches the work. A low-height RCS or hollow-plunger RCH set serves a different mechanical need.
Specifications
| Power Source | Manual |
|---|---|
| Pump Type | Foot Pump |
| Pump Operation | Foot Operated |
| Cylinder Compatibility | Single-Acting |
| Load Capacity | 10 Ton |
| Cylinder Type | General Purpose |
| Cylinder Stroke | 6.13 in |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
