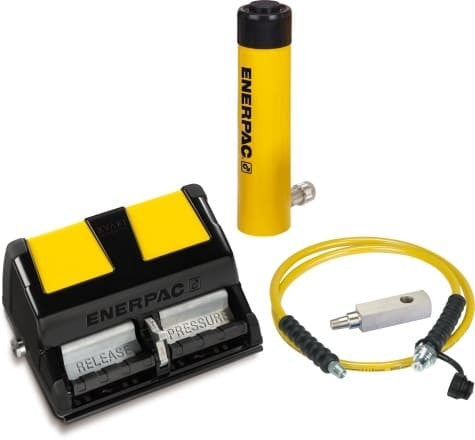

SCR106XA Enerpac Hydraulic Cylinder & Air Pump Set combines a 10 Ton RC-Series single-acting cylinder with an air-powered hydraulic pump. The cylinder provides 6.13 in of travel for general-purpose lifting and positioning work.
This configuration trades manual independence for powered operation from shop air. That can be a better fit in maintenance bays, production areas and field setups with a dependable compressed-air source.
Why This Model Is Different
The 6.13-inch RC-106 sits between Enerpac’s 2.13- and 10.13-inch 10-ton cylinders. That middle position makes it a balanced choice when a short-stroke cylinder is too limiting but the longest version would add unnecessary height and travel.
The RC cylinder makes this a versatile solid-plunger set rather than a specialized low-height or hollow-cylinder package. Final selection should be based on required load, usable stroke and the preferred power source.
Specifications
| Product Family | Porta Power |
|---|---|
| Pump Type | Air Pump |
| Cylinder Type | General Purpose |
| Load Capacity | 10 Ton |
| Cylinder Stroke | 6.13 in |
| Power Source | Compressed Air |
| Pump Operation | Air Operated |
| Cylinder Compatibility | Single-Acting |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
