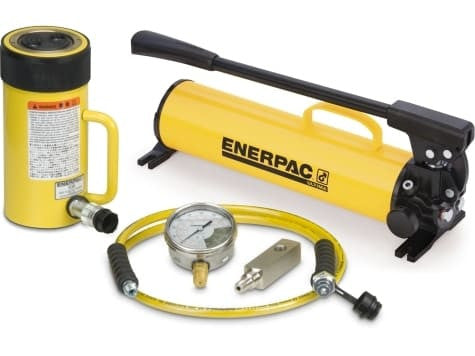

SCR2514H Enerpac Hydraulic Cylinder & Hand Pump Set is the long-travel outlier in the 25-ton RC group. The RC-2514 cylinder provides 14.25 inches of stroke—far more movement than the 2-, 4- and 6.25-inch 25-ton alternatives—while hydraulic power is supplied manually.
Choose It for Travel, Not Just 25-Ton Capacity
This set makes sense when the job needs a substantial working range and reducing cylinder repositioning is worth the taller cylinder package. A buyer who only needs a short lift can use a much shorter RC cylinder at the same nominal capacity.
The manual pump keeps the set independent of external power, but Enerpac notes that cylinders of 25 tons and above can require many hand-pump strokes, especially with longer-stroke applications. For frequent cycling, the air-powered SCR2514XA deserves comparison because it uses the same long-stroke cylinder concept with powered pumping.
SCR2514H therefore occupies a very specific place in the family: maximum 25-ton RC travel combined with the simplicity and portability of a hand-operated hydraulic source.
Specifications
| Power Source | Manual |
|---|---|
| Pump Type | Hand Pump |
| Pump Operation | Hand Operated |
| Cylinder Compatibility | Single-Acting |
| Load Capacity | 25 Ton |
| Cylinder Type | General Purpose |
| Cylinder Stroke | 14.25 in |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
