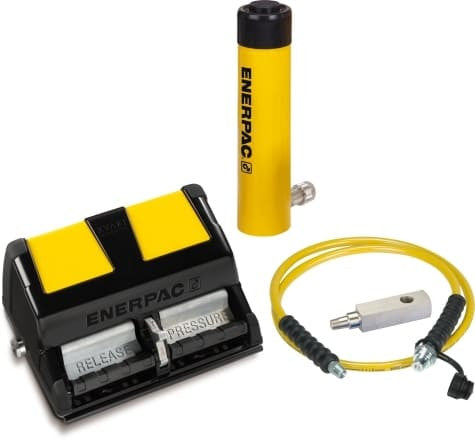

SCR252XA is an air-powered RC-Series cylinder set intended for general hydraulic lifting and positioning. Its mechanical side is defined by 25 Ton capacity and 2 in of cylinder travel.
Matching the Set to the Job
The 2-inch RC-252 is the shortest-stroke 25-ton cylinder in the set range. It is the logical starting point when force matters more than travel and the job benefits from minimizing cylinder height.
The air pump is most useful when cycle frequency or cylinder oil demand makes hand pumping less attractive. It keeps the hydraulic system portable while using compressed air as the energy source.
Choose SCR252XA when an RC general-purpose cylinder is the right geometry and this specific combination of force, travel and pump style matches the work. A low-height RCS or hollow-plunger RCH set serves a different mechanical need.
Specifications
| Power Source | Compressed Air |
|---|---|
| Pump Type | Air Pump |
| Pump Operation | Air Operated |
| Cylinder Compatibility | Single-Acting |
| Load Capacity | 25 Ton |
| Cylinder Type | General Purpose |
| Cylinder Stroke | 2 in |
| Gauge Included | Yes |
| Set Type | Cylinder & Pump Set |
